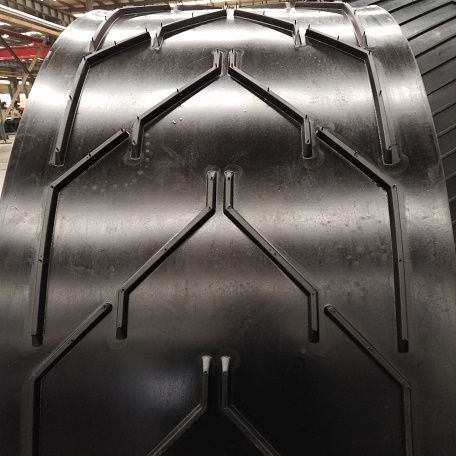

Chevron Conveyor Belt

1. Application:

Chevron Conveyor Belt is precisely suited for conveying bagged or bulky and loose materials on sloping surface at angles of less than 40°.

It is applicable in many industrial applications including coal, minerals, ore and solid duty scrap metal. This anti-slip Chevron Conveyor Belt has top cover cover & cleats are vulcanized integrally. The angle, pitch and pattern of cleat are designed elaborately.

2. Features:   Anti-slip
Cleats and top cover rubber are vulcanized integrally;
Cleat pattern, angle and pitch are designed elaborately.

Our featured products is 3ply/4ply range of DIN Grade C15 & C25 Chevron Cleated Rubber Conveyor Belt: 3P450C15, 3P600C15, 3P650C15, 3P/4P750C15, 3P/4P800C15, 3P/4P900C15, 3P/4P1200C15, 3P/4P900C25, 3P900C25 & 3P1200C25 is produced in both a 15mm or 25mm high Chevron V Cleat in varying pitch centers and pattern width dependant on the actual belt widths.

Our range of Chevron V6, C6, C15 & C25 Chevron Belts are suitable for over roller incline conveying applications and in particular mobile road scalpers, cold planers & crushers, spreaders, batching plants & tub grinders. Our Cleated Rubber Conveyor Belt is manufactured with an EP (polyester/nylon) carcass that provides high strength, low stretch, excellent trough ability & good impact resistance.

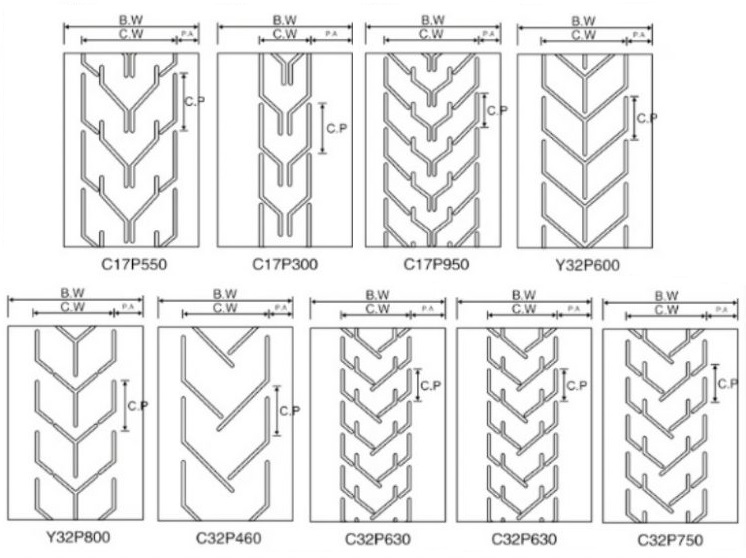

We can also customize the following patterns：
